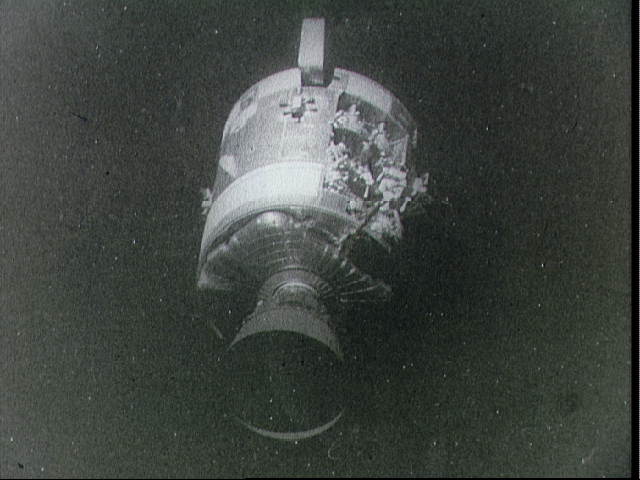

This view of the damaged Apollo 13 Service Module (SM) was photographed
from the Lunar Module/Command Module following SM jettisoning. As seen
here, an entire panel on the SM was blown away by the apparent explosion
of oxygen tank number two located in Sector 4 of the SM. Two of the three
fuel cells are visible just forward (above) the heavily damaged area.
Three fuel cells, two oxygen tanks, and two hydrogen tanks are locate in
Sector 4. The damaged area is located above the S-band high gain antenna.
Nearest the camera is the Service Propulsion System (SPS) engine and
nozzle. The damage to the SM caused the Apollo 13 crewmen to use the Lunar
Module (LM) as a "lifeboat". The LM was jettisoned just prior to Earth
reentry by the Command Module
