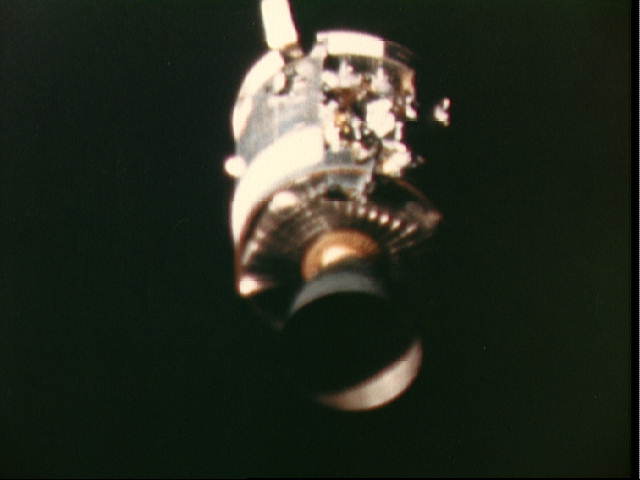

This view of the damaged Apollo 13 Service Module (SM) was photographed by
a maurer 16mm motion picture camera from the Lunar Module/Command Module
following SM jettisoning. As seen here, an entire SM panel was blown away
by the apparent explosion of oxygen tank number two located in Sector 4 of
the SM. Two of the three fuel cells are visible just forward (above) the
heavily damaged area. Three fuel cells, two oxygen tanks, and two hydrogen
tanks are located in Sector 4. The damaged area is located above the
S-Band high gain antenna. Nearest the camera is the Service Propulsion
System (SPS) engine and nozzle. The damage to the SM caused the Apollo 13
crewmen to use the Lunar Module (LM) as a "lifeboat". The LM was jettisoned
just prior to Earth reentry by the Command Module
